Safetouch AVF needles are specifically designed to ensure safe removal and disposal of the needle in order to protect patients and healthcare professionals from needle stick injuries (NSI).

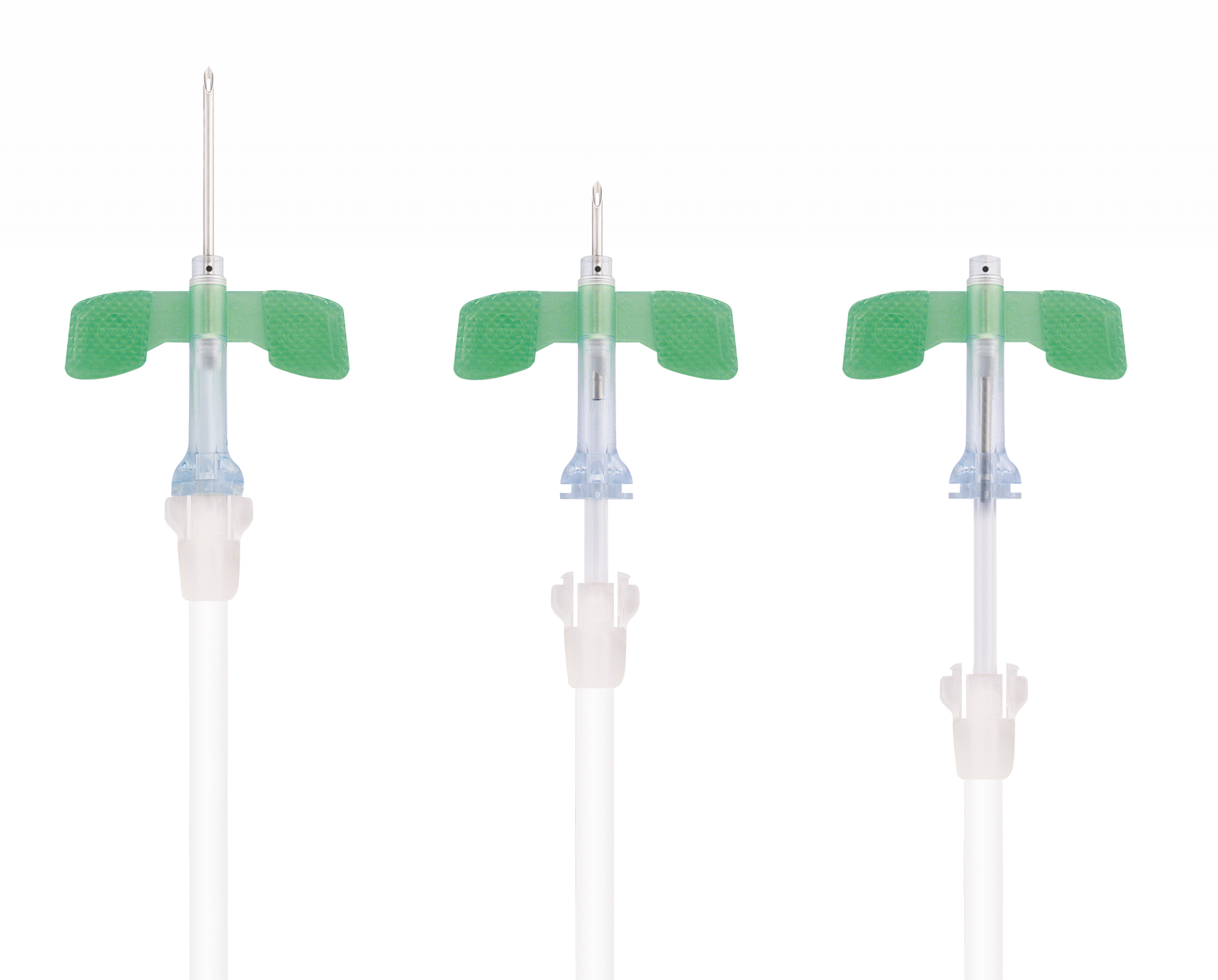

Equipped with an active safety mechanism, this needle confirms locking with an audible and tactile “click” and does not require a change in puncture technique.
Soft, flexible tubing eases clamping during bloodline connection/disconnection while also absorbing shocks and reducing needle movement in the patient. In other words, Safetouch AVF needles are a safe and comfortable choice.

  • Reduced risk of needle stick injuries
  • Nonreversible safety mechanism
  • Active safety feature using a one-handed technique
  • Unique locking mechanism confirmed by audible and tactile “click”
  • Ultra-sharp, siliconized 3-bevel needle for smooth cannulation
  • Ultra-thin wall for optimal blood flow
  • Textured, turnable or fixed, color-coded wings
  • Color-coded occlusion clamp and tapered luer
  • Latex-free, DEHP-free
  • Gamma sterilization

Specifications
SafeTouch AVF Needles
Arterial Needle Venous Needle Size (Gauge) Needle Length (mm) Tube Length (mm) Color
AVSF1420-HTC-15RGT AVSF1420-TC-15B-GT 14 20 150
AVSF1425-HTC-15RGT AVSF1425-TC-15B-GT 14 25 150
AVSF1430-HTC-15RGT AVSF1430-TC-15B-GT 14 30 150
AVSF1420-HTC-30RGT AVSF1420-TC-30B-GT 14 20 300
AVSF1425-HTC-30RGT AVSF1425-TC-30B-GT 14 25 300
AVSF1430-HTC-30RGT AVSF1430-TC-30B-GT 14 30 300
AVSF1520-HTC-15RGT AVSF1520-TC-15B-GT 15 20 150
AVSF1525-HTC-15RGT AVSF1525-TC-15B-GT 15 25 150
AVSF1530-HTC-15RGT AVSF1530-TC-15B-GT 15 30 150
AVSF1520-HTC-30RGT AVSF1520-TC-30B-GT 15 20 300
AVSF1525-HTC-30RGT AVSF1525-TC-30B-GT 15 25 300
AVSF1530-HTC-30RGT AVSF1530-TC-30B-GT 15 30 300
AVSF1620-HTC-15RGT AVSF1620-TC-15B-GT 16 20 150
AVSF1625-HTC-15RGT AVSF1625-TC-15B-GT 16 25 150
AVSF1630-HTC-15RGT AVSF1630-TC-15B-GT 16 30 150
AVSF1620-HTC-30RGT AVSF1620-TC-30B-GT 16 20 300
AVSF1625-HTC-30RGT AVSF1625-TC-30B-GT 16 25 300
AVSF1630-HTC-30RGT AVSF1630-TC-30B-GT 16 30 300
AVSF1720-HTC-15RGT AVSF1720-TC-15B-GT 17 20 150
AVSF1725-HTC-15RGT AVSF1725-TC-15B-GT 17 25 150
AVSF1730-HTC-15RGT AVSF1730-TC-15B-GT 17 30 150
AVSF1720-HTC-30RGT AVSF1720-TC-30B-GT 17 20 300
AVSF1725-HTC-30RGT AVSF1725-TC-30B-GT 17 25 300
AVSF1730-HTC-30RGT AVSF1730-TC-30B-GT 17 30 300

Needles with turnable wings. Arterial and venoius needles are also available with fixed wings instead of turnable wings.
Please contact your local office for other specifications, order quantities, and availability
