NIPRO is a globally active manufacturer of hypodermic needles, leveraging over 70 years of experience to deliver trusted solutions for healthcare professionals worldwide.

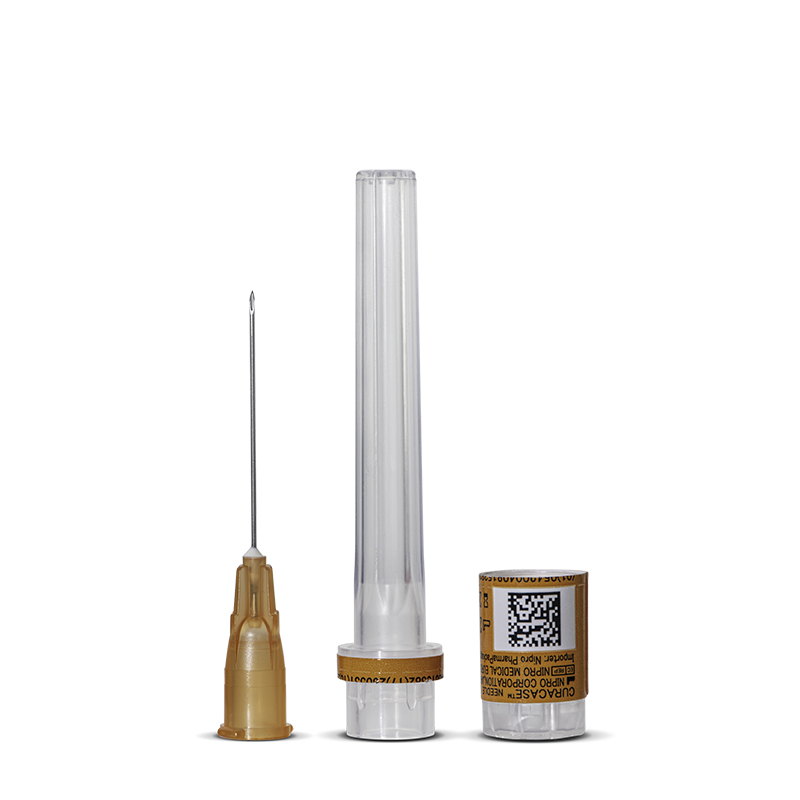

CURACASE™ needles are individually packed in durable hard plastic unit packs. The compact unit pack minimizes space requirements1 in secondary packaging, making them ideal for by-packing.
Additionally, the unit pack supports compatibility with feeders and automated pick-and-place systems2.
Each pack features a color-coded label and barcode, enabling in-line product identification via vision systems. The color-coded labels on CURACASE™ unit packs support quick and accurate needle size selection by healthcare professionals.
The ergonomically designed packaging ensures a secure grip, allowing for easy opening and smooth cap removal.
Tamper-evident labels provide visual confirmation that the needle is unused prior to administration.
CURACASE™ needles feature an sharp lancet point and a siliconized cannula, contributing to smooth and comfortable injections.
For the administration of more viscous medications, thin wall needle options are available, enabling more efficient delivery compared to regular wall designs.
CURACASE™ needle hubs are color-coded in accordance with ISO 80369-7, ensuring proper connection to syringes.
-
Supports a smooth packaging process
-
Contributes to smooth administrations
-
Ensures secure connection to syringes
Footnotes
1: When compared with hypodermic needles packed in a blister pack
2: Compatibility is depending on systems used during the packaging process
Specifications
Range
| Outer diameter | Needle length | Wall type | Hub - color | ||
|---|---|---|---|---|---|
| (in gauge) | (in mm) | (in inch) | (in mm) | ||
| 21G | 0.8 | 1½ | 38 | Thin-wall | Dark green |
| 22G | 0.7 | ⁵⁄₈ | 1 | 1¼ | 1½ | 16 | 25 | 32 | 38 | Thin-wall | Black |
| 23G | 0.6 | ⁵⁄₈ | 1 | 1¼ | 1½ | 16 | 25 | 32 | 38 | Thin-wall | Blue |
| 25G | 0.5 | ⁵⁄₈ | 1 | 1¼ | 1½ | 16 | 25 | 32 | 38 | Thin-wall | Orange |
| 26G | 0.45 | ⁵⁄₈ | 1 | 1¼ | 1½ | 16 | 25 | 32 | 38 | Regular-wall | Brown |
| 27G | 0.4 | ½ | ⁵⁄₈ | 1 | 1¼ | 1½ | 13 | 16 | 25 | 32 | 38 | Regular-wall / Thin-wall | Grey |
Other needle sizes upon request
Packaging levels
| Unit pack | Inner bag | Outer box | Pallet |
|---|---|---|---|
| Hard plastic case (shield & cap) | Double PE bag | Cardboard | Euro pallet |
| 1 piece | 5,000 pieces | 5,000 pieces | 120,000 pieces |
| 1 inner bag per carton | 24 outer boxes (3 layers of 6 outer boxes) |
- Sterile, disposable, single use
- 5 years of shelf-life (after sterilization date)
- EtO sterilization
- CE-marked
Downloads
Frequently Asked Questions (FAQs)
What does "hypodermic" mean?
"Hypodermic" refers to something that is situated or occurring beneath the skin. In the context of healthcare and medicine, it commonly refers to hypodermic injections or hypodermic needles.
What does the “Wall type” mean?
It describes wall thickness of the needle, which is the difference between the outer diameter and inner diameter. Thin Wall offers more flow rate and less extrusion force. It is compliance with ISO standards.
What is the “Hub – color”?
It indicates the nominal outer diameter of the tube of the needle. It is also compliance with ISO standards.
