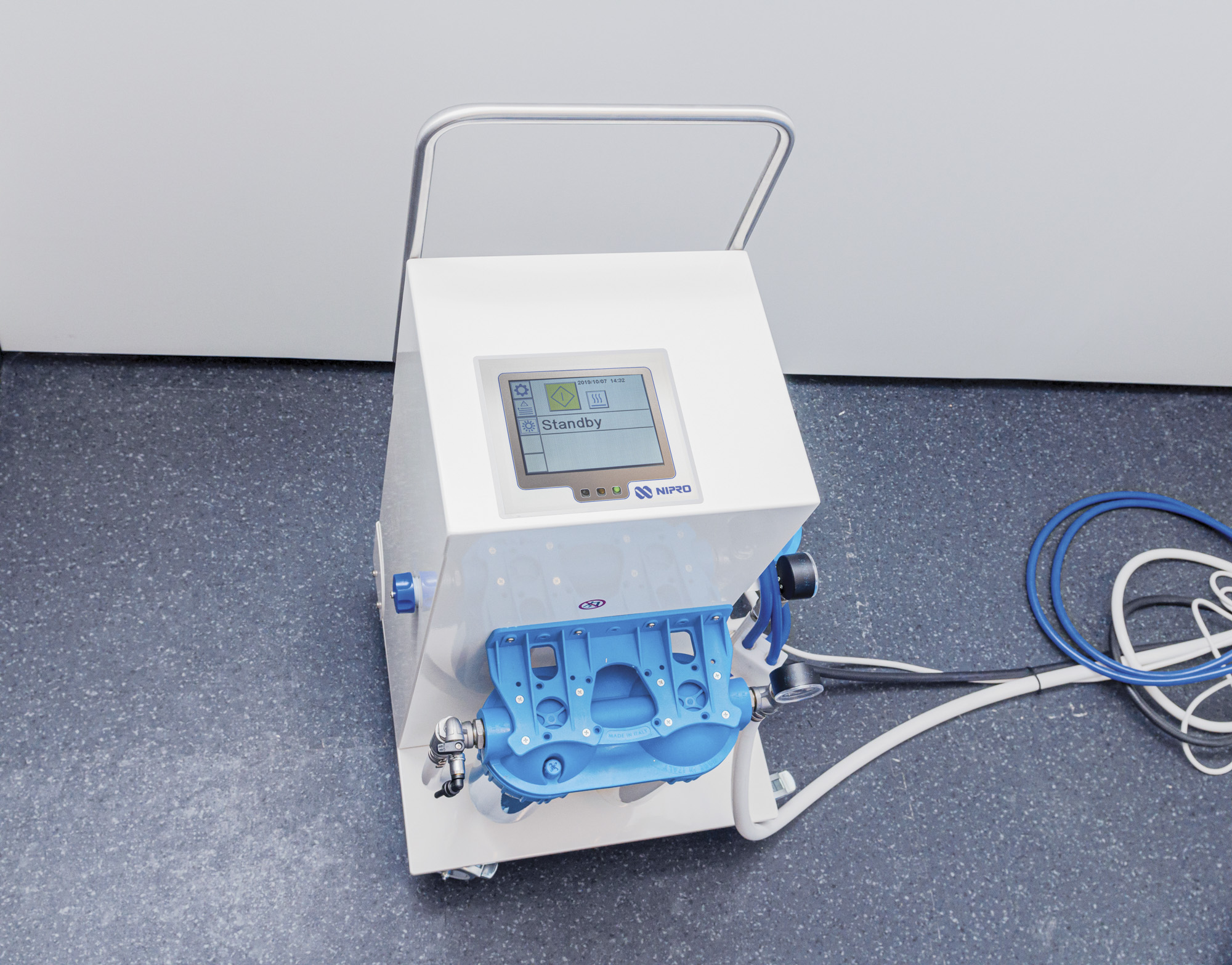

Product Overview

A safe, continuous supply of dialysis water is now available in a high performing, low maintenance system.

Thanks to multiple built-in safety features – including internal heat disinfection – HemoRO 4 ONE fulfills the rigorous requirements of home and acute dialysis, ensuring the utmost in patient safety.

This portable solution is ideal for dialysis centers or ICUs in need of mobility, as well as patients who wish to carry out their dialysis treatments in the comfort of home.

Benefits

  • Safe: semi-automated heat disinfection (membrane, permeate path and connection hoses with >80°C hot water) ensures high water quality and microbiological safety for dialysis
  • Mobile: robust housing and compact design, lightweight and easy to move thanks to built-in wheels and handle
  • Easy to use: ready to use within 10 mins, low noise operation, USB and Ethernet connectivity.
Specifications





Specification 230 V

Specification 115 V

Dimensions

Measurements (W x H x D)

315 x 875 x 300 mm

315 x 875 x 300 mm

Weight

Dry weight

35 kg

35 kg

Operating weight

< 45 kg

< 45 kg





Performance data

Dialysis water capacity at 10 °C and 2.5 bar counter pressure

50 l/h A,B, 70 l/h A,C

50 l/h A,B, 70 l/h A,C

Dialysis water pressure

3 bar / 0.3 MPa

3 bar / 0.3 MPa

Retention rate

99% NaCl

99% NaCl

Noise level

< 50 dB

< 50 dB



Water connections

Feed water

Hose stem D8

Hose stem D8

Dialysis water

Nipple type 103 DN6

Nipple type 103 DN6

Waste water

Hose stem D8

Hose stem D8









Electrical data

Mains plug

CEE 7/7 D

NEMA 5-15P D

Mains voltage

230 V AC 50 Hz

115 V AC 60 Hz

Protective conductor cross-section area

1.5 mm B

18 AWG

Building main fuses

16 A, RCD IΔN = 30 mA

B-15A acc. to UL489,

RCD 30 mA type A or B

Power consumption

1.5 kW

1.2 kW

Protection class

I

I

Protection type

IP21

IP21













Feed water

Quality

Drinking water E

Drinking water E

Inflow, see possible combinations

200 l/h B, 250 l/h C

200 l/h B, 250 l/h C

Feed water pressure, see possible combinations

> 1.5 bar / 0.15 MPa B

> 2.5 bar / 0.25 MPa C

< 8.0 bar / 0.8 MPa

> 1.5 bar / 0.15 MPa B

> 2.5 bar / 0.25 MPa C

< 8.0 bar / 0.8 MPa

Hardness

< 15 °dH / 2.45 mmol/l

< 15 °dH / 2.45 mmol/l

Blocking index/SDI

< 3

< 3

Conductivity

100 to 2,000 μS/cm

100 to 2,000 μS/cm

Iron

< 0.05 mg/l

< 0.05 mg/l

Free chlorine

< 0.1 mg/l

< 0.1 mg/l

Temperature range

5 to 30 °C

5 to 30 °C

pH

6.5 to 8.5

6.5 to 8.5

Waste water

Free drainage

max. 50 cm above

device top edge

max. 50 cm above device

top edge



Environmental conditions

Transport / storage temperature

1 to 45°C

1 to 45°C

Operating temperature

5 to 35°C

5 to 35°C

Relative air humidity

max. 90%

max. 90%

Installation altitude

< 2,000 m above NHN F

< 2,000 m above NHN F

Possible combinations

HemoRO 4 ONE: ECO



Inflow

Feed water pressure

(50 l/h)

> 200 l/h

> 1,5 bar (dyn.)

< 8,0 bar (stat.)

+ with pre-filter

> 200 l/h

> 2,5 bar (dyn.)

< 8,0 bar (stat.)

+ with pre-filter system

> 200 l/h

> 4,5 bar (dyn.)

< 8,0 bar (stat.)

+ with softener

> 300 l/h

> 2,0 bar (dyn.)

< 8,0 bar (stat.)

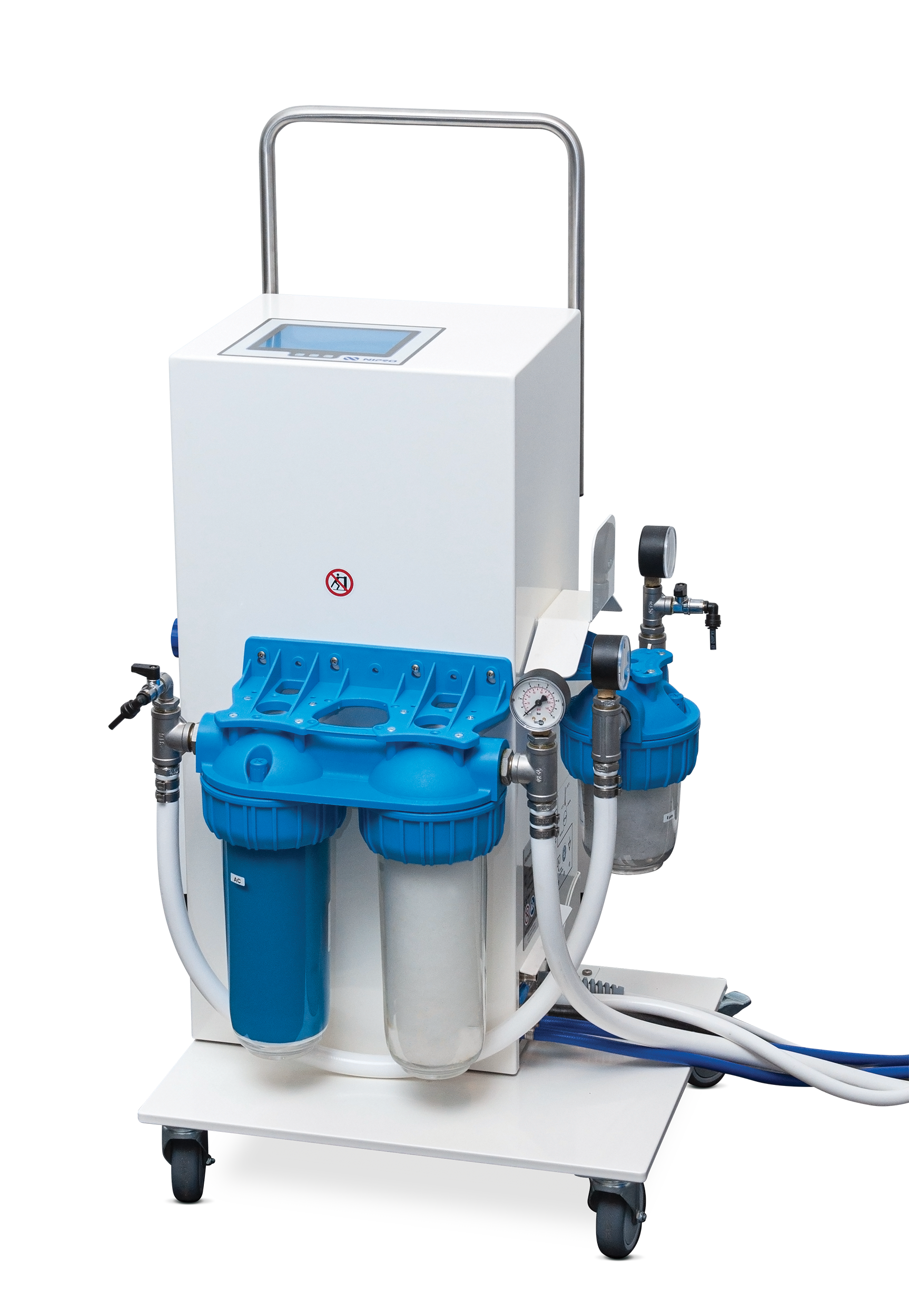

+ with pre-filter system and softener

> 300 l/h

> 4,5 bar (dyn.)

< 8,0 bar (stat.)

HemoRO 4 ONE: MAX



Inflow

Feed water pressure

(70 l/h)

> 250 l/h

> 2,5 bar (dyn.)

< 8,0 bar (stat.)

+ with pre-filter

> 250 l/h

> 3,5 bar (dyn.)

< 8,0 bar (stat.)

+ with pre-filter system

> 250 l/h

> 5,5 bar (dyn.)

< 8,0 bar (stat.)

+ with softener

> 350 l/h

> 3,5 bar (dyn.)

< 8,0 bar (stat.)

+ with pre-filter system and softener

> 350 l/h

> 6,0 bar (dyn.)

< 8,0 bar (stat.)
