Aperta NSE™

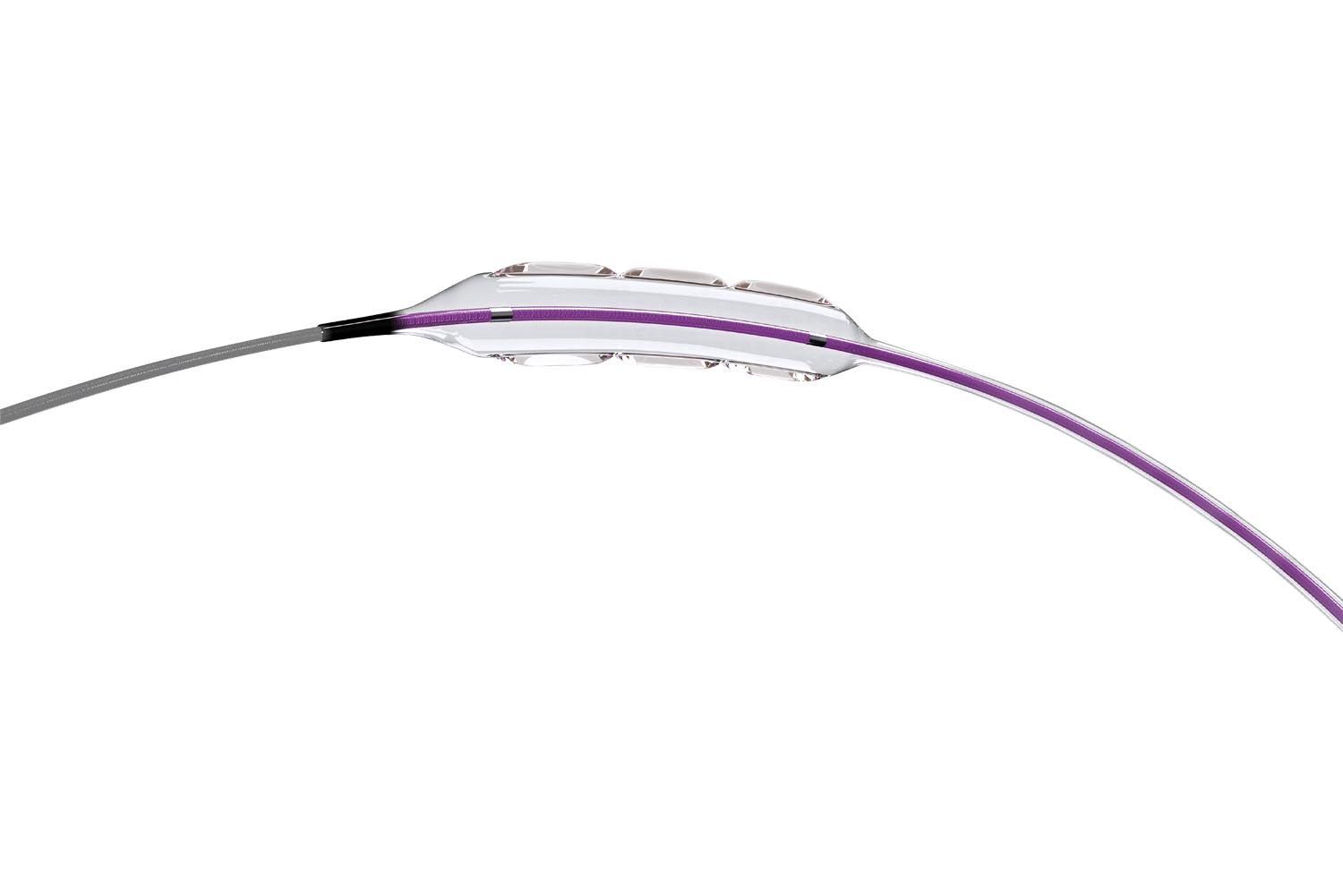

Aperta NSE Nipro vascular product

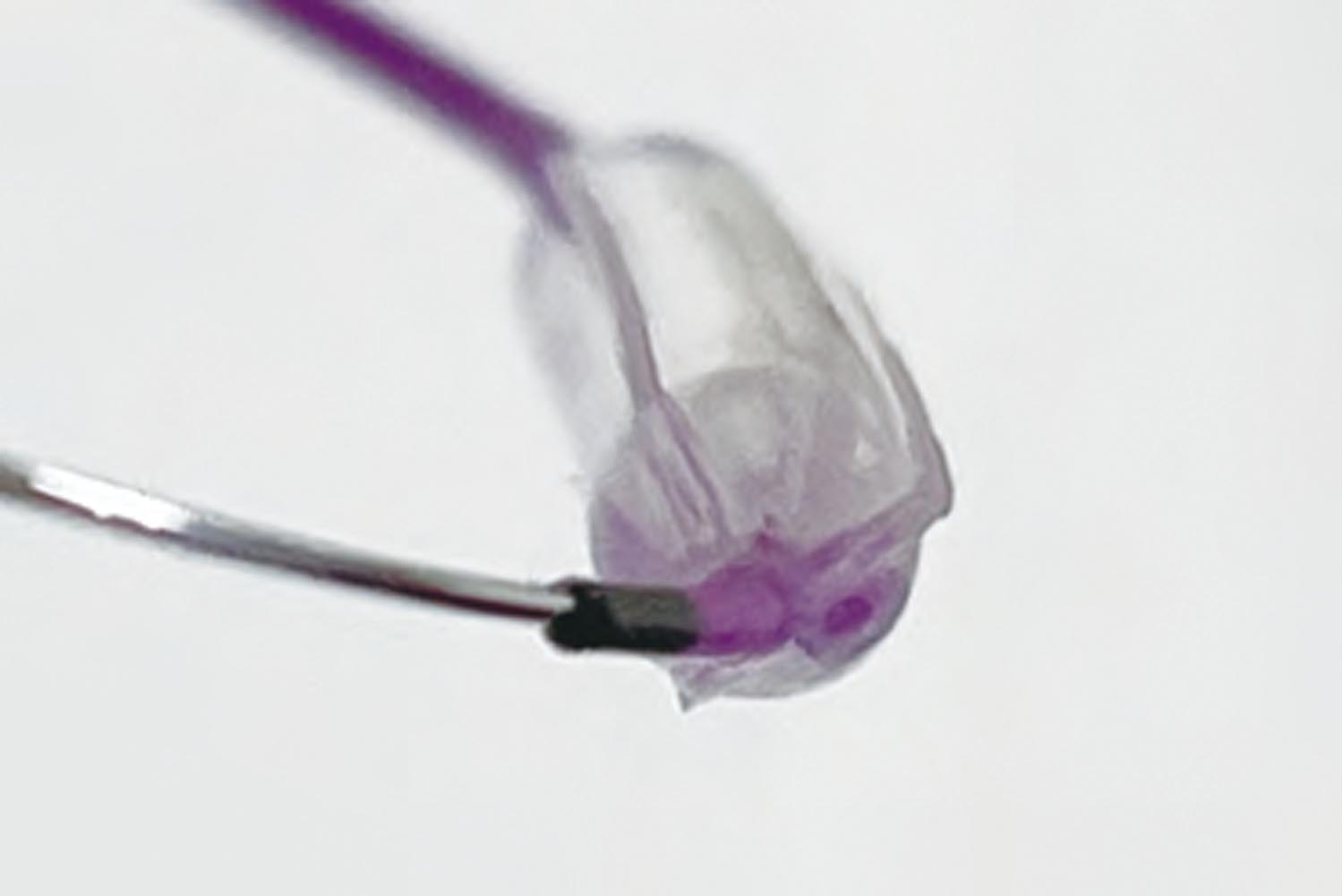

Aperta NSE - scoring balloon expansion

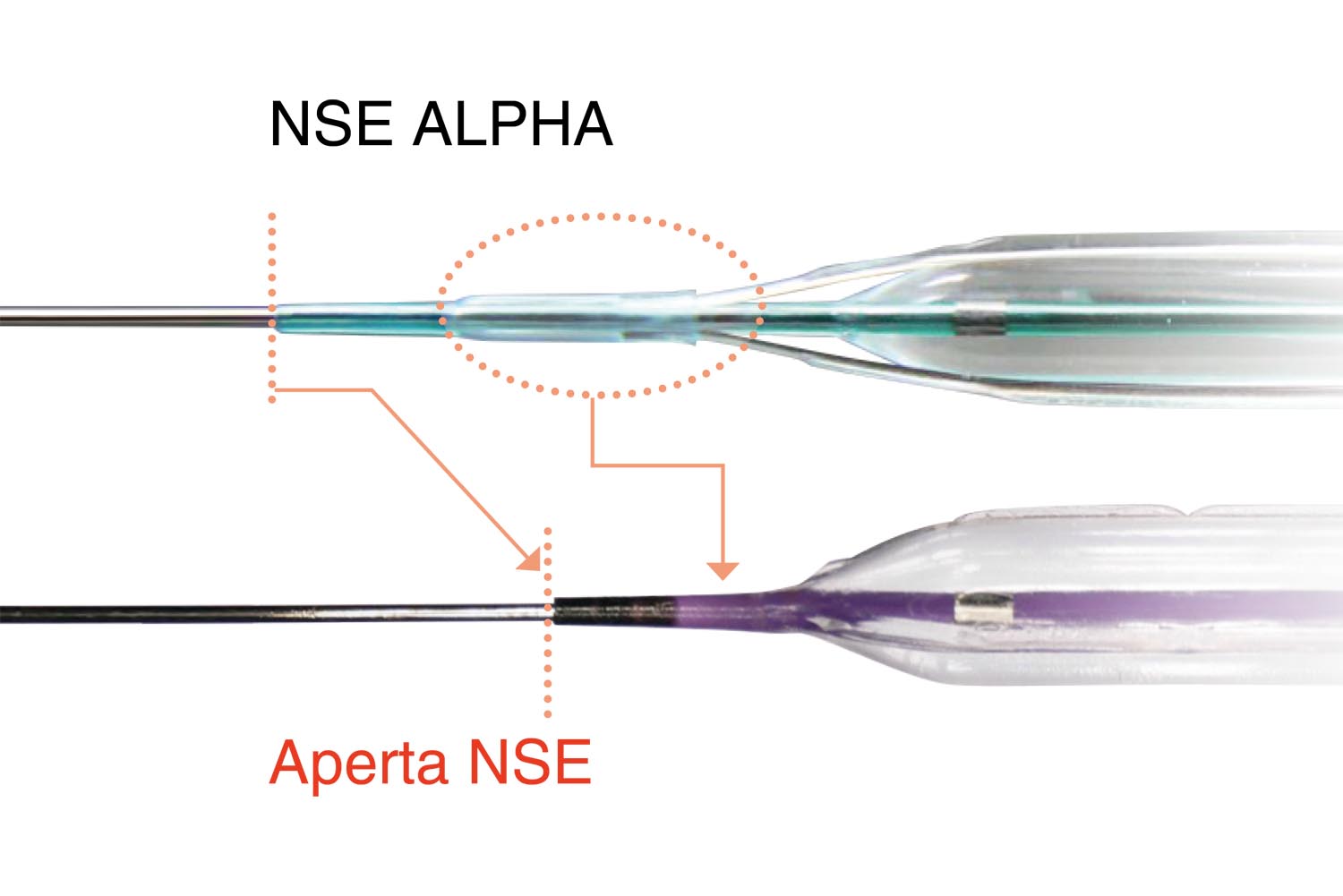

Aperta NSE - reduce balloon crossing

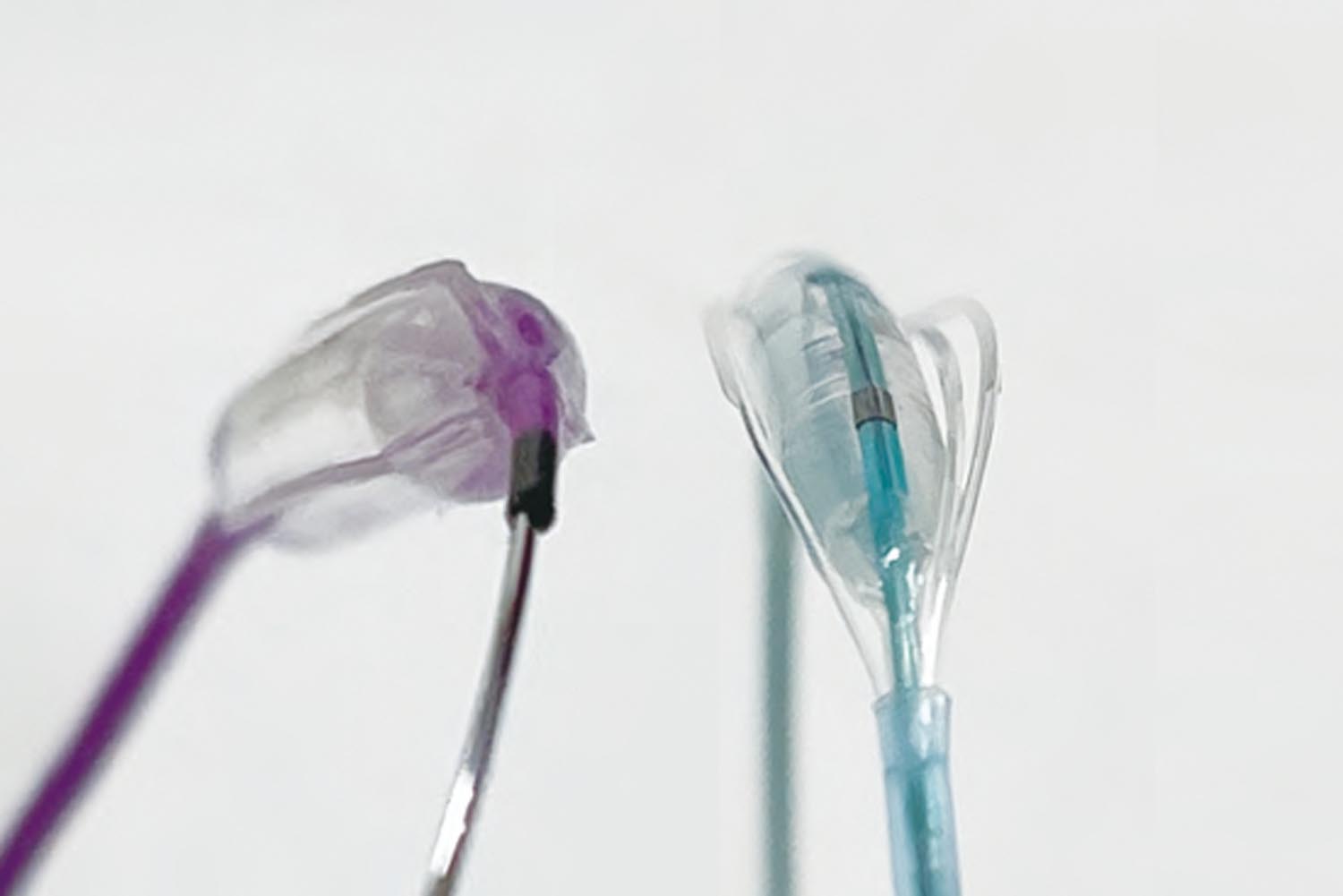

Aperta NSE - non-compliant platform for high pressure

A modified design to the NSE scoring balloon catheter ensures a greater scoring effect on a non-compliant platform with a lower crossing profile.

Aperta NSE™ is the next generation of NSE.

  • Integrating the element with the balloon maintains the element positioning 120 degrees apart during balloon expansion.
  • A non-compliant platform provides an increase in push transmission from the apex of the element.
  • A reduced balloon crossing profile by eliminating the element connection.
Specifications
NSE Aperta - catheter design - Nipro vascular products

Compliance chart

Inflation pressure Balloon diameter (mm)
atm kPa 2.00mm 2.25mm 2.50mm 2.75mm 3.00mm 3.25mm 3.50mm 4.00mm
4 4x10² 1.78 2.02 2.27 2.45 2.70 2.95 3.18 3.50
5 5x10² 1.81 2.05 2.30 2.50 2.73 2.98 3.23 3.55
6 6x10² 1.84 2.08 2.33 2.55 2.76 3.01 3.26 3.60
7 7x10² 1.86 2.11 2.36 2.59 2.79 3.04 3.29 3.65
8 8x10² 1.88 2.13 2.38 2.63 2.82 3.07 3.32 3.70
9 9x10² 1.90 2.15 2.40 2.65 2.85 3.10 3.35 3.75
10 10x10² 1.92 2.17 2.42 2.67 2.88 3.13 3.38 3.80
11 11x10² 1.94 2.19 2.44 2.69 2.91 3.16 3.41 3.85
12 12x10² 1.96 2.21 2.46 2.71 2.94 3.19 3.44 3.90
13 13x10² 1.98 2.23 2.48 2.73 2.97 3.22 3.47 3.95
14 (NP) 14x10² 2.00 2.25 2.50 2.75 3.00 3.25 3.50 4.00
15 15x10² 2.02 2.27 2.52 2.77 3.02 3.27 3.52 4.02
16 16x10² 2.04 2.29 2.54 2.79 3.04 3.29 3.54 4.04
17 17x10² 2.06 2.31 2.56 2.81 3.06 3.31 3.56 4.06
18 18x10² 2.08 2.33 2.58 2.83 3.08 3.33 3.58 4.08
19 19x10² 2.09 2.35 2.60 2.85 3.10 3.35 3.60 4.10
20 20x10² 2.10 2.36 2.62 2.87 3.12 3.37 3.62 4.12
21 21x10² 2.11 2.37 2.64 2.89 3.14 3.39 3.64 4.14
22 22x10² 2.12 2.38 2.66 2.91 3.16 3.41 3.66 4.16
23 23x10² 2.13 2.39 2.68 2.93 3.18 3.43 3.68 4.18
24 (RBP) 24x10² 2.14 2.40 2.70 2.95 3.20 3.45 3.70 4.20
25 25x10² 2.15 2.41 2.72 2.97 3.22 3.47 3.72 4.22
26 26x10² 2.16 2.42 2.74 2.99 3.24 3.49 3.74 4.24
27 27x10² 2.17 2.43 2.76 3.01 3.26 3.51 3.76 4.26
