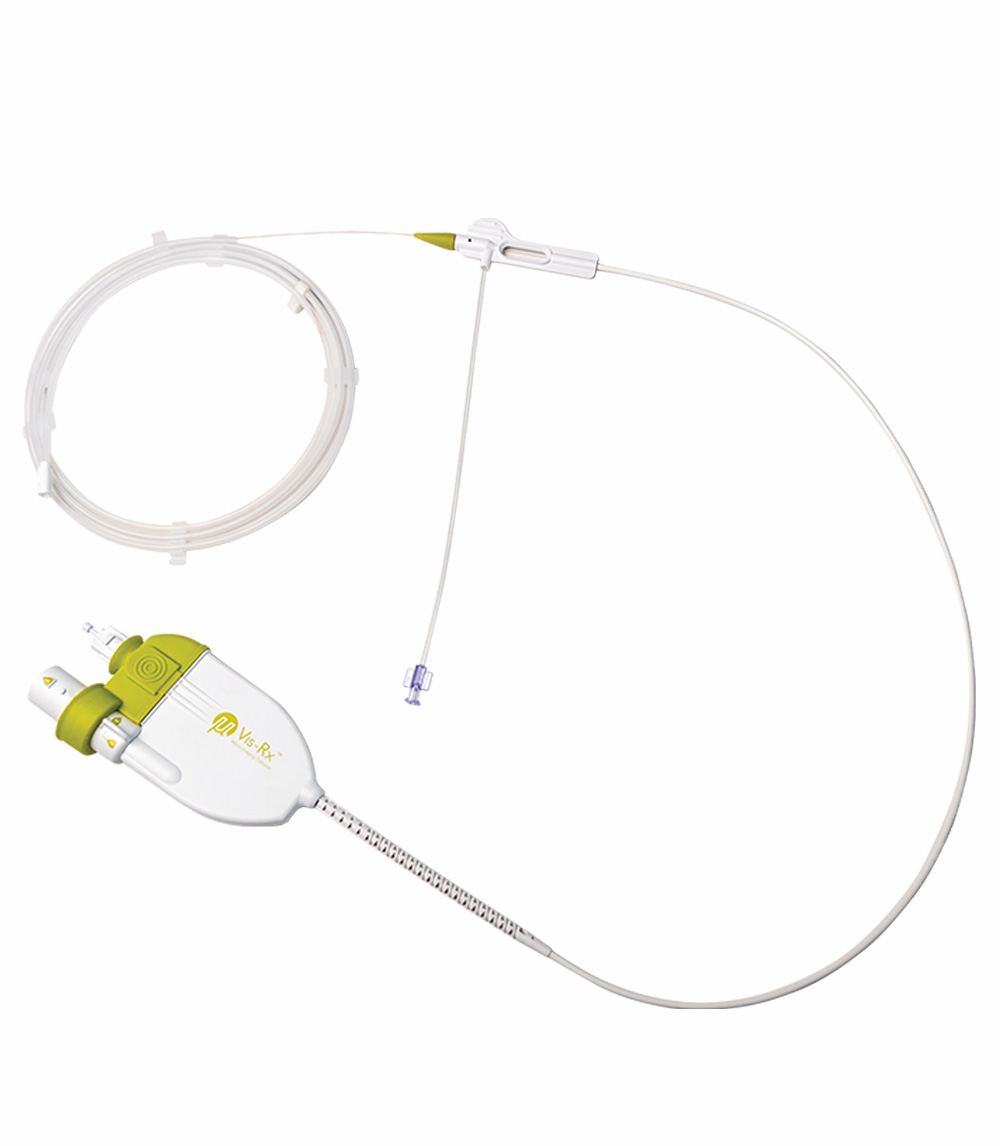

Make informed decisions with our cutting-edge intravascular imaging system. The catheter enters vessels as small as 1.3 mm and up to 6.0 mm. It gives you better images of tight lesions and avoids the risk of disrupting a lesion before you have decided how to treat it. It saves times by clearing without having to pre-dilate.
The catheter can image up to 100mm, which allows you to image the whole coronary artery in one single pullback. The state-of-the-art laser allows images to be captured quickly and accurately offering you insights in just one second.
- World’s smallest intracoronary imaging catheter
- 33% longer than other OCT systems available
- Fastest pullback speed for one second imaging
- 165 cm lengthy catheter supports radial and femoral access
Specifications
- 1.8 F (or 0.6 mm) rapid exchange catheter
- 165 cm working length
- 17 mm minirail tip
- Hydrophilic coating on distal 30 cm
- Indicated for coronary arteries 1.3 to 6.0 mm in diameter
- Three radiopaque markers
- Tip marker 4 mm proximal to tip
- Lens marker 5 mm distal to lens (2 mm in length)
- Pullback marker 50 mm proximal to lens
